Amazon VPC Explained: Components, Architecture, and How It Works in AWS

To understand AWS networking, it is important to clearly answer What is Amazon VPC.

Amazon VPC is a virtual network dedicated to your AWS account. It allows organizations to create isolated cloud environments where applications and infrastructure resources can run securely.

Inside a VPC, you control:

• IP address ranges

• Subnet design

• Routing policies

• Network security rules

• Connectivity with external networks

This level of control makes Amazon VPC similar to designing your own data center network—but inside the AWS cloud.

Default vs Custom VPC

Every AWS account includes a default Amazon VPC. The default VPC allows users to quickly launch resources without manually configuring networking.

However, most organizations prefer creating custom Amazon VPC environments because they allow:

• Stronger security policies

• Better network segmentation

• High availability architectures

• Custom routing configurations

Understanding What is Amazon VPC becomes easier when you see it as the networking foundation that supports every application running in AWS.

In cloud architecture workshops, learners typically create custom VPC environments using segmented CIDR ranges. This approach helps teams design scalable multi-tier architectures supporting hundreds of compute instances across multiple Availability Zones.

To design cloud networks properly, we must understand what are the components of an Amazon VPC.

A VPC is built using several networking components that define how resources communicate with each other and with external networks.

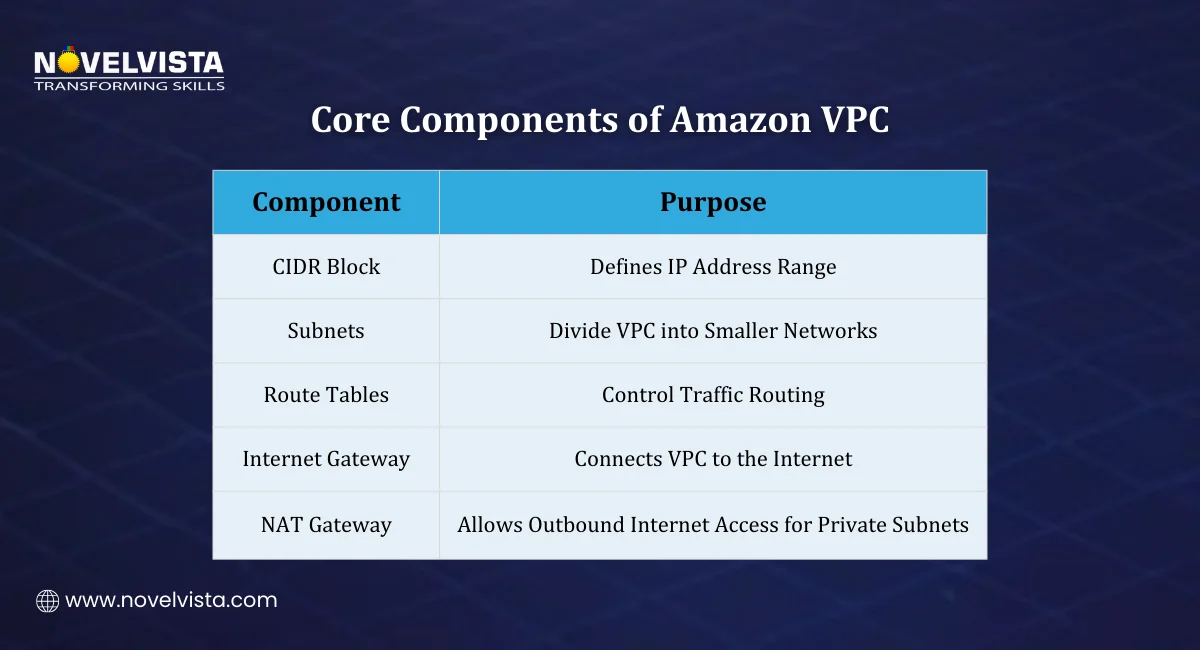

Below are the most important elements of Amazon VPC architecture.

1. CIDR Block

The CIDR block defines the IP address range for the VPC.

For example:

10.0.0.0/16

This range determines how many private IP addresses can exist inside the VPC.

Key points:

• Supports IPv4 and IPv6 addressing

• CIDR sizes range from /28 (smallest) to /16 (largest)

• Defines the maximum number of resources in the VPC

Every Amazon VPC must have at least one CIDR block.

2. Subnets

Subnets divide a VPC into smaller networks. They are created inside specific Availability Zones (AZs) to support high availability.

Two common subnet types exist.

A. Public Subnets

Public subnets contain resources that must be accessible from the internet.

Examples include:

• Web servers

• Load balancers

• Bastion hosts

These subnets connect to the internet using an Internet Gateway.

B. Private Subnets

Private subnets host internal services that should not be exposed to the internet.

Examples include:

• Application servers

• Databases

• Internal APIs

Private subnets improve security by limiting external access. These subnet designs are central when discussing What are the components of an Amazon VPC.

3. Route Tables

Route tables control how network traffic flows within Amazon VPC. Each subnet must be associated with a route table. Routes define how traffic moves to different destinations. Common route targets include:

• Local routing within the VPC

• Internet Gateway (IGW)

• NAT Gateway

• VPC endpoints

By defining routes properly, administrators control how data flows across cloud networks.

4. Internet Gateway (IGW)

The Internet Gateway allows resources inside public subnets to communicate with the internet.

It performs two main functions:

• Allows inbound internet traffic

• Allows outbound internet traffic

Instances in public subnets rely on this gateway to interact with external users.

5. NAT Gateway

Private subnet instances often need internet access for tasks like:

• Software updates

• Security patches

• API calls

However, they should not be directly accessible from the internet. A NAT Gateway solves this problem. It allows:

• Outbound internet access from private subnets

• Blocking inbound internet connections

This ensures security while maintaining functionality. Understanding What are the components of an Amazon VPC helps architects design reliable cloud networking systems.

Networking alone is not enough—security is equally important. Amazon VPC includes multiple security layers that control traffic access.

Two primary security mechanisms exist.

Security Groups

Security groups act as instance-level firewalls. They control which traffic is allowed to reach resources. Security groups are stateful, meaning:

• If inbound traffic is allowed, return traffic is automatically permitted.

Security group rules define:

• Allowed protocols

• Port ranges

• Source or destination IP addresses

Because of this behavior, security groups are commonly used to secure EC2 instances inside Amazon VPC.

Network Access Control Lists (NACLs)

Network ACLs operate at the subnet level. Unlike security groups, they are stateless. This means rules must be defined for:

• Inbound traffic

• Outbound traffic

NACLs provide an additional layer of security in the Amazon VPC architecture.

During cloud security training exercises, teams frequently test layered controls using both Security Groups and NACLs. This approach helps simulate enterprise environments where multiple network security checkpoints are required.

Once the internal networking components are in place, the next step is understanding how Amazon VPC connects with other networks and services. Most modern cloud architectures require communication between multiple VPCs, on-premise systems, and AWS services.

AWS provides several connectivity options that extend the capabilities of Amazon VPC.

VPC Peering

VPC Peering allows two VPCs to connect directly with each other. Key characteristics include:

• Private communication between two VPC networks

• Traffic stays within AWS infrastructure

• No internet gateway required

However, VPC Peering has one limitation: it is non-transitive. This means traffic cannot automatically pass through one VPC to reach another.

Despite that limitation, VPC Peering is commonly used when applications in separate VPC environments need secure internal communication.

VPN and AWS Direct Connect

Many organizations run hybrid infrastructures that combine on-premise data centers with AWS cloud services. To support this model, Amazon VPC provides two connectivity methods.

Site-to-Site VPN

• Connects on-premise networks to AWS using encrypted tunnels

• Uses IPsec for secure communication

AWS Direct Connect

• Provides a dedicated private connection between on-premise networks and AWS

• Offers lower latency and more consistent performance than internet-based connections

These connectivity options help organizations extend their infrastructure into the cloud securely.

VPC Endpoints and PrivateLink

Some applications require access to AWS services without exposing traffic to the public internet. VPC Endpoints and AWS PrivateLink enable private connectivity between Amazon VPC and AWS services.

Benefits include:

• Private access to services like S3 and DynamoDB

• Improved security by avoiding public internet traffic

• Simplified network architecture

These capabilities are particularly useful for applications that must meet strict security or compliance requirements.

AWS Transit Gateway

Large organizations often operate dozens or even hundreds of VPC environments. Managing direct connections between all of them can quickly become complex. AWS Transit Gateway simplifies this architecture.

It acts as a central hub that connects multiple networks, including:

• Multiple VPCs

• On-premise environments

• VPN connections

This centralized model makes large Amazon VPC environments easier to manage.

When designing cloud environments, architects often follow a common Amazon VPC architecture pattern. Most production architectures span multiple Availability Zones (AZs) to ensure reliability and high availability.

A typical architecture includes several layers.

Public Subnet Layer

Public subnets host components that must receive internet traffic. Examples include:

• Web servers

• Load balancers

• Bastion hosts

These resources connect to the internet through an Internet Gateway.

Private Application Layer

Application servers are usually placed inside private subnets. This protects internal application logic from direct internet exposure. These servers typically communicate with public components through internal routing.

Database Layer

Databases are also placed in private subnets. This ensures that sensitive data systems are not directly accessible from external networks.

Common deployments include:

• Amazon RDS Multi-AZ databases

• Internal data processing services

High Availability Architecture

To ensure reliability, many architectures also include:

• Application Load Balancer (ALB) distributing traffic across multiple AZs

• Auto Scaling groups automatically adjust compute capacity

• Multi-AZ database deployments for redundancy

Traffic within Amazon VPC usually follows this flow:

Router → Route Table → Network ACL → Security Group → Instance

This layered architecture allows organizations to design secure and scalable cloud environments.

In AWS architecture implementation labs, learners frequently deploy multi-tier applications using separate subnet layers. This design pattern mirrors production environments where web, application, and database tiers remain isolated.

Understanding the deployment process helps explain how cloud networking is actually built. When setting up a VPC environment, administrators typically follow a structured process.

Step 1: Create the VPC

The first step is creating a VPC with a defined CIDR block.

Example:

10.0.0.0/16

This block defines the IP address space available within the Amazon VPC.

Step 2: Create Subnets

Next, subnets are created across multiple Availability Zones. These subnets divide the network into smaller segments.

Typical architectures include:

• Public subnets

• Private application subnets

• Private database subnets

Step 3: Configure Route Tables

Each subnet is associated with a route table. Routes determine where network traffic should be directed.

For example:

• Internet traffic → Internet Gateway

• Internal traffic → local VPC routing

Step 4: Attach Internet Gateway

To allow internet access, an Internet Gateway must be attached to the VPC. Public subnet instances can then communicate with external networks.

Step 5: Configure NAT Gateway

Private subnets often require outbound internet access. A NAT Gateway enables this while keeping the instances hidden from the public internet.

Once configured, resources inside the same Amazon VPC communicate using private IP addresses.

Connectivity can then be expanded through:

• VPC Peering

• VPN connections

• Private endpoints

Understanding how to use Amazon VPC is essential for designing scalable cloud applications.

Organizations typically deploy applications inside VPC environments using structured workflows.

How to use Amazon VPC for application deployment usually follows these steps.

1. Create a VPC with the desired IP address range

2. Create public and private subnets

3. Configure route tables and security groups

4. Launch EC2 instances inside the defined subnets

5. Configure load balancers and scaling groups

6. Enable private endpoints or VPC peering if required

A common deployment architecture looks like this:

Public Subnets

• Application Load Balancer

• Web servers

Private Subnets

• Application servers

• Databases

This architecture improves security by isolating critical components from public access.

Industry data highlights how widely this design is used.

There are several reasons why Amazon VPC has become the standard networking solution in AWS.

Network Isolation

Amazon VPC allows organizations to isolate infrastructure from public networks. This improves security and reduces exposure to external threats.

Flexible Network Architecture

Organizations can design custom networking architectures, including:

• Multi-tier applications

• Hybrid cloud connectivity

• Multi-region deployments

This flexibility makes Amazon VPC suitable for many different workloads.

High Scalability

Amazon VPC supports infrastructure across:

• Multiple Availability Zones

• Multiple regions

• Thousands of resources

This scalability allows organizations to grow cloud infrastructure without major redesign.

Integration with AWS Networking Services

Amazon VPC integrates with several AWS services, including:

• Elastic Load Balancing

• AWS Transit Gateway

• AWS Direct Connect

• AWS PrivateLink

These integrations allow teams to build advanced networking architectures. In many cloud certification programs, VPC architecture is a core exam topic. Professionals preparing for AWS architect roles frequently practice designing secure multi-tier VPC environments before certification assessments.

Cloud networking is the foundation of every application running on AWS, and Amazon VPC plays a central role in building secure environments.

By combining CIDR blocks, subnets, routing rules, security layers, and connectivity services, organizations can create highly controlled cloud networks.

Understanding What is Amazon VPC and how its components work together helps architects design reliable, scalable infrastructure.
