Understanding AWS Global Infrastructure

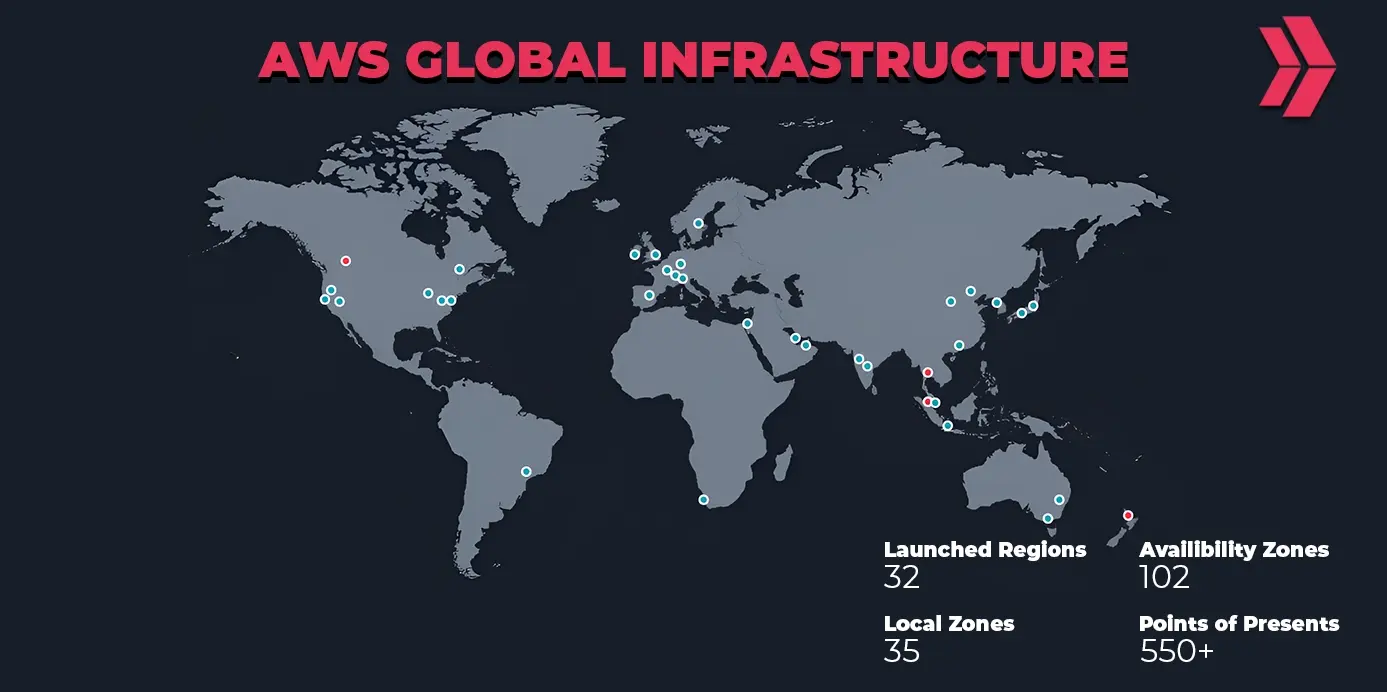

The AWS Global Infrastructure is a globally distributed network designed to provide reliable, secure, and scalable cloud solutions. It consists of multiple regions and availability zones strategically located worldwide to minimize latency and ensure high availability. Businesses rely on the AWS Global Infrastructure to host their applications closer to their customers, enhancing performance and user satisfaction. With its robust design, the AWS Global Infrastructure supports redundancy, ensuring business continuity even during unexpected disruptions.

AWS Global Infrastructure is the foundational architecture that supports Amazon Web Services (AWS) and enables the delivery of services worldwide. It is designed to provide high availability, fault tolerance, and low latency for applications.

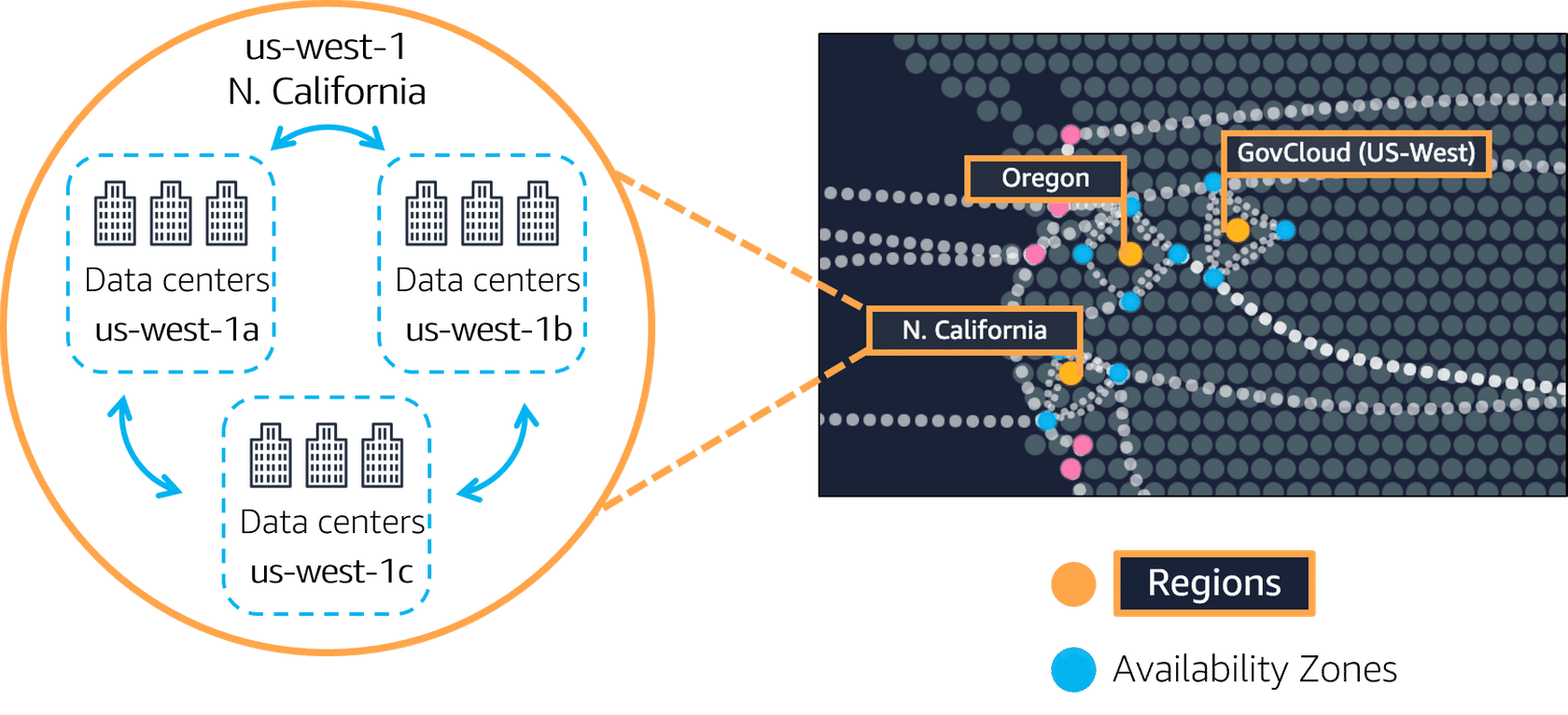

Each region comprises many segregated Availability Zones, each of which runs on its own physically unique, independent infrastructure and is designed to be very reliable.

• There are various discrete Availability Zones in each region (ranging from 2 to 6).
• Each AZ has its own power, cooling, physical security, and redundant, ultra-low-latency networks connecting them.
• Each AZ is physically isolated from the others, so a rare tragedy like a fire or an earthquake would only strike one of them.
• Within the same region, AZs are physically separated and serve as autonomous failure zones.
• Multiple tier-1 transit providers are redundantly connected to AZs.
• All AZs in an AWS region are connected via high-bandwidth, low-latency networking through fully redundant, dedicated metro fiber, allowing for high-throughput, low-latency networking.
• All communication between AZs is encrypted.
• To achieve high availability, the Multi-AZ feature, which distributes resources across several AZs, can be utilized to distribute instances across different AZs.
• By mapping Availability Zones to IDs for each account, AWS guarantees that resources are allocated throughout the Availability Zones.

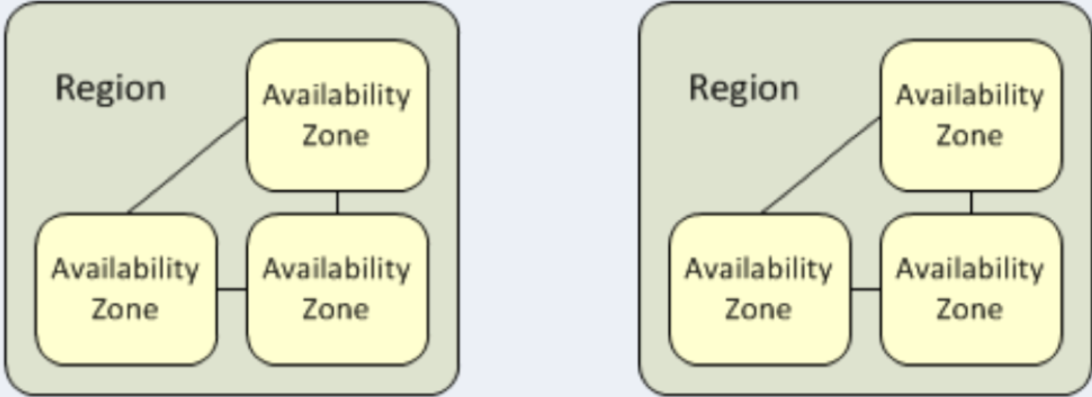

Customers can use AWS to place instances and store data across regions known as Regions. Each region is a self-contained collection of AWS resources in a specific geographical area.

• Each region is a distinct geographical location that is self-contained.
• Each area is a geographical place with a cluster of data centers located worldwide.
• Each Amazon zone is designed to be isolated from the others, allowing for the most fault tolerance and stability feasible.
• Communication between regions occurs through the public Internet, and proper encryption methods should be employed to protect data.
• The transmitting and receiving instances of data transfer between regions are charged at the Internet data transfer rate.
• Unless specifically stated, resources are not copied between areas.

AWS maintains an edge location for content distribution through a global network of data centers.

These locations are located in most major cities worldwide and are used by the Content Delivery Network (CDN) to distribute content to end-users to reduce latency.

Local Zones on AWS bring computation, storage, databases, and other AWS services closer to end-users.

Highly demanding applications, including media and entertainment content creation, real-time gaming, reservoir simulations, circuit design automation, and machine learning, can now operate with single-digit millisecond latency to end-users due to AWS Local Zones.

Latency-sensitive applications can be hosted in each AWS Local Zone location, an extension of an AWS Region. AWS EC2, VPC, EBS, File Storage, and ELB are all AWS services used near end-users.

AWS Local Zones provide a high-bandwidth, secure connection between local workloads and AWS Region workloads, allowing you to connect to the complete spectrum of in-region services using the same APIs and toolsets.

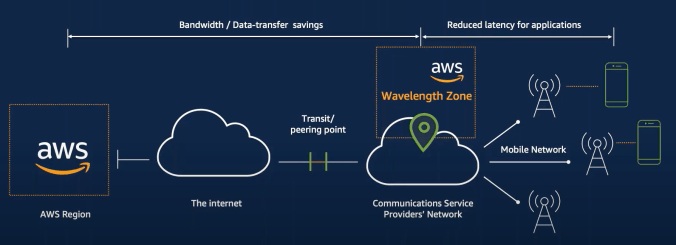

AWS Wavelength is a service that extends Amazon Web Services’ infrastructure to the edge of 5G networks, allowing developers to build applications that require ultra-low latency and high bandwidth. This is particularly useful for scenarios where immediate processing and responsiveness are critical.

Key Features of AWS Wavelength:

• Ultra-Low Latency: By deploying AWS services at the edge of 5G networks, Wavelength enables applications to achieve single-digit millisecond latencies, which is essential for use cases like real-time gaming, augmented reality (AR), virtual reality (VR), and autonomous vehicles.
• Integration with 5G Networks: Wavelength allows developers to leverage 5G networks' capabilities to deliver low-latency services directly to mobile devices. This integration enhances mobile applications' performance and responsiveness.
• Seamless AWS Services: Wavelength provides seamless access to AWS services such as compute (EC2), storage (S3), and machine learning (SageMaker) from the edge, enabling developers to build robust applications using familiar AWS tools and services.
• Support for Edge Applications: Ideal for applications that require low latency, such as IoT, video processing, and real-time analytics. This helps in processing data closer to where it is generated, reducing the need to send it to central data centers.
• Deployment Flexibility: Wavelength can be deployed in partnership with telecom providers, allowing customers to utilize existing network infrastructure while enhancing their applications’ capabilities.

Use Cases for AWS Wavelength:

• Gaming: Real-time multiplayer gaming experiences that require low latency to ensure smooth gameplay.
• AR/VR: Applications that rely on immersive experiences and immediate feedback, such as virtual shopping or training simulations.
• IoT Applications: Use cases where devices generate large amounts of data that need to be processed quickly, such as smart cities or connected vehicles.
• Streaming Video: Low-latency streaming for live events, enabling interactive experiences with minimal delays.

AWS Outposts

AWS Outposts is a fully managed service that extends AWS infrastructure, services, APIs, and tools to on-premises locations. It allows businesses to run applications with low-latency or local data processing requirements on their premises while maintaining seamless integration with AWS cloud services.

AWS Outposts brings the same hardware and software infrastructure used in AWS regions, enabling consistent operations across cloud and on-premises environments. This service is ideal for industries like healthcare, finance, and manufacturing, where compliance, data residency, or low-latency processing are crucial. Another advantage of the AWS Global Infrastructure is its ability to meet regulatory compliance across diverse regions, making it a preferred choice for enterprises operating internationally. The infrastructure’s scalability allows organizations to expand operations without limitations, adapting seamlessly to growing demands. Leveraging the AWS Global Infrastructure empowers businesses to build globally available, resilient, and high-performing applications while ensuring top-notch security standards.
